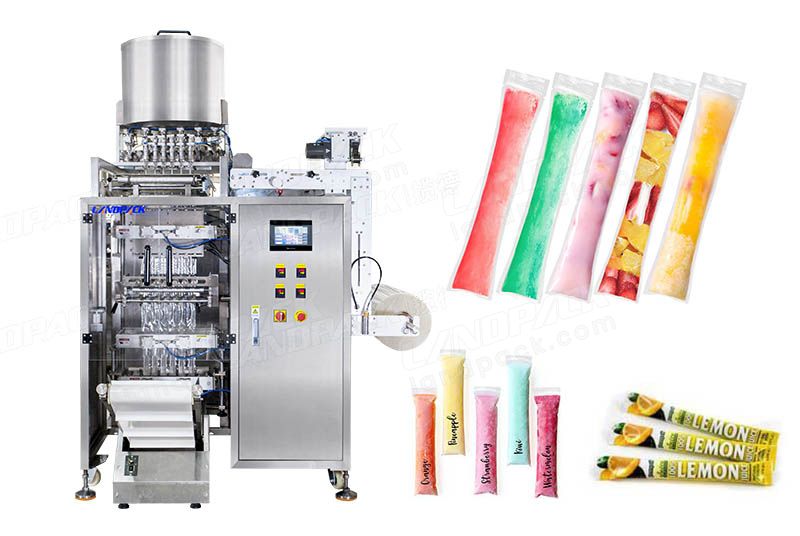

Automatic Liquid Ice Lolly Multi Line Sachet Packing Machine

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

Application:

It is suitable for many kinds of liquid products, such as ice candy, ice popsicles, ice cream, ketchup, honey, sauce, oil, paste, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:应用图.jpg

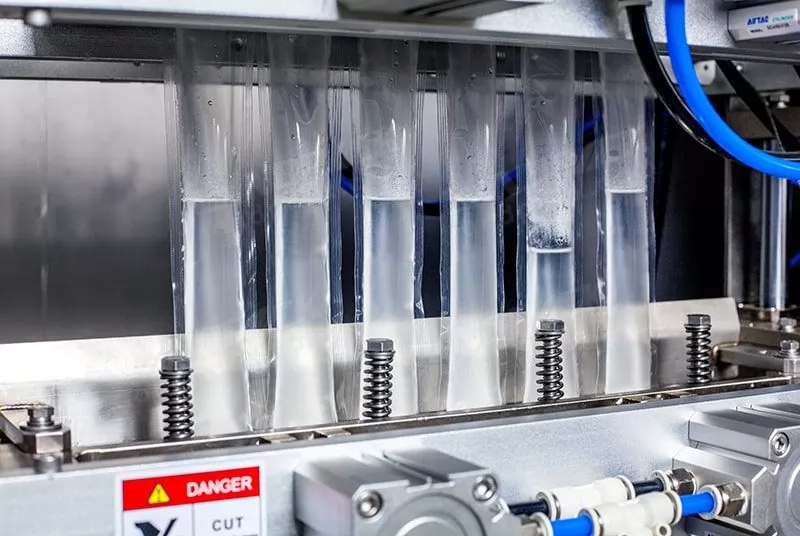

Multi lanes machines can produce multi lanes bags at the same time;

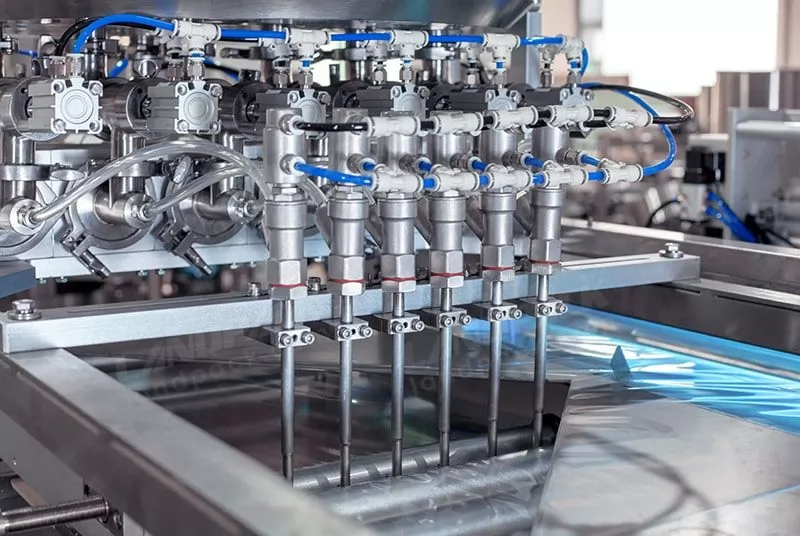

Machine main function: automatic split film at the right position, liquid measuring, and filling, multi lanes bag form fill seal, cutting, sensor tracking, counting capacity;

Other functions: Emergency stop, set capacity to auto stop machine, count capacity and Zero the count, ready bag output, manual test machine each step, etc;

Stainless steel contact part and the machine outer shell, high feature for the liquid running environment;

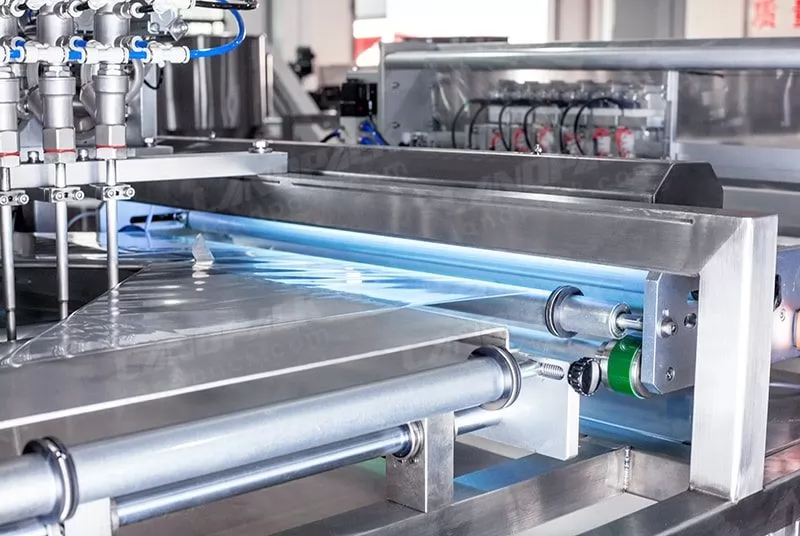

High precision photocell sensor for auto tracking the eye mark printing on the film roll, so cut each bag at the precise position;

PLC controller, high function and control the whole machine’s work steps.

ModelLD-480YLD-720YLD-960Y
Track Number4~6 Track4~10 Track4~12 Track
Filling Method1.Piston pump;   2.Peristaltic Pump
CapacityMax.40 cycle/min
Sachet SizeL:45--120mm; W:35-60mmL:45--120mm; W:35-90mmL:45--120mm; W:35-120mm
Film Width & ThicknessMax.480mm;0.07-0.1mmMax.720mm;0.07-0.1mmMax.960mm;0.07-0.1mm
Sealing Type3/4 sides sealing3/4 sides sealing3/4 sides sealing
Cutting Type1. Straight Cutting;    2. Zig Zag Cutting;    3. Continuous Cutting
Air & Power0.8 mpa  0.8m³/min; 2.8kw0.8 mpa  0.8m³/min; 4.1kw0.8 mpa  0.8m³/min; 5.5kw
DIM & WT950*1470*1750mm; 300kg1153*1654*1750mm; 400kg1415*1686*2130mm; 500kg
