1. Applicable label: self-adhesive label, self-adhesive film, PIATS, barcode, etc.
2. Applicable products: the products that need to attach labels or film on the plane or the large radian surface.
3. Application industry: widely used in cosmetics, food, toys, daily chemical, electronic, pharmaceutical and other industries.
4. Application examples: scratch card, garment tag, business card and paper card label, etc.
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
1.With stable paging, the card sorting rate is much higher than that of the general card sorting mechanism.
2.High paging labeling speed, with the monitoring code for the medicine box, the stable speed can reach more than 100 pieces/min.
3.It is widely used and can be used to label all kinds of CARDS and CARDS.

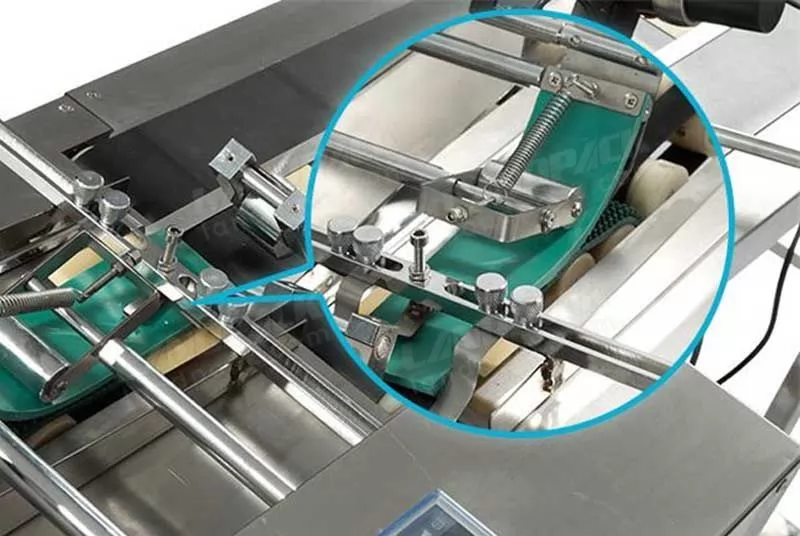

4.Stable labelling accuracy, using pressure top roller to press the workpiece, conveying steady, no warping, ensure the accuracy of labelling;
5.The mechanical adjustment part structure combination and the smart design of label winding, 6 degrees of freedom of labeling position fine adjustment is convenient, so that the conversion between different products and label winding become simple and time-saving;
6.Intelligent control, automatic electro-optical tracking, with no object and no label, prevent label waste;

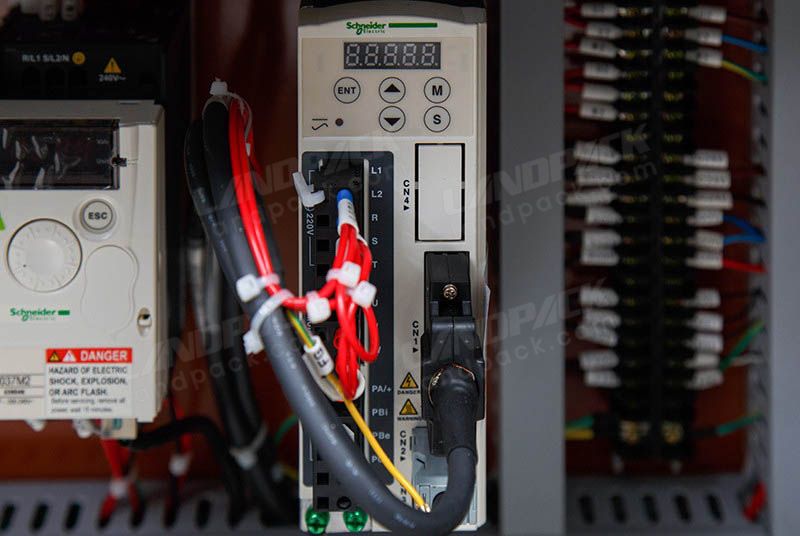

7.High stability, panasonic PLC+ dimensional control touch screen + panasonic needle electric eye + lait/titis label electric eye advanced electric control system, supporting 7X24 hours operation of equipment;
8.It has the function of fault prompt, production count, power saving, production number setting prompt and parameter setting protection;
9.Optional function: hot stamping/spraying code, automatic feeding and automatic receiving.
|Label Length||8～150mm||Labeling Speed||50～150pcs/min|
|Label Width||6～100mm||Transport Speed||5～25m/min|
|Products Width||40～200mm||Voltage||220V 50Hz|
|Roller outer dia.||Ø280mm||Conveyor Direction||From left to right|
|Roller inner dia.||Ø76mm||Machine Size||2200*750*1400mm|
|Accurancy||±1mm||Labeling Type||Rolling stick|
