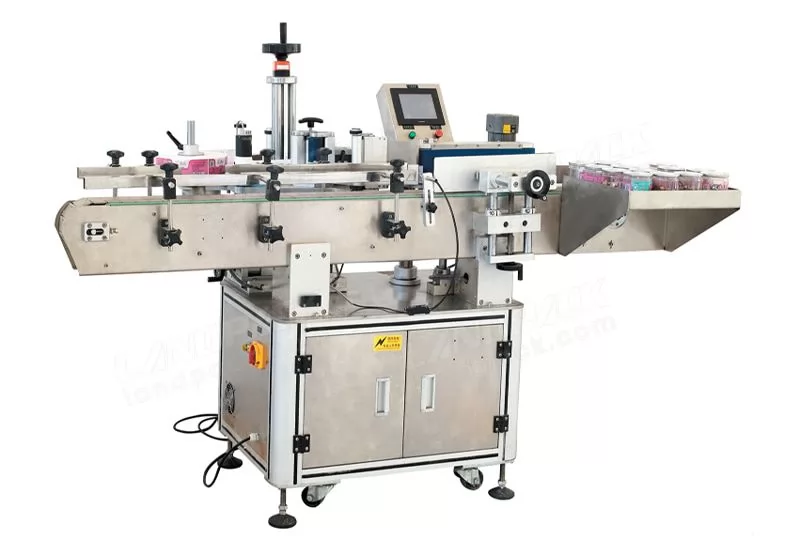

Automatic Round Bottle/ Flat Bottle/ Square Bottle Sticker Labeling Machine

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

Application:

The scope of application is very wide, suitable for single labeling of round bottles or irregular bottles.. It can be used individually or attached to assemble line. It is widly used with bear bottle, beverage bottle, shampoo and comestic.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Round Bottle/ Flat Bottle/ Square Bottle Sticker Labeling Machine

1.The whole machine is made of S304 stainless steel and high grade aluminum alloy

2.The labeling head using the advanced import from Japan motor drive.

3.All electric eye are Japan and Germany advanced photo electric eye

4.PLC cooperate with large man-machine interface control, containing 60 sets of memory

5.The machine is the most suitable for a small number of products and single player operation.

6.The machine has bottle guide, bottle branch, label, round flat, counting and other agencies

7.It can adjust labeling position,height and angle.

8.It can connected the transmission with the production line.

NAME
Technical parameters
Model
LD-TB130
labeling range
L<300mm,H<120mm
Labeling  speed
30 bottle/min.
Labeling  accurancy
±1.5mm
Size of main frame
L1900*W800*1450(mm)
Working voltage
220V
Electricity power
420W
Weight
250KG
Packing Dimension
2100(L)*1150(W)*1450(H)mm

Después de recibir su consulta, le enviaremos la cotización lo antes posible.
