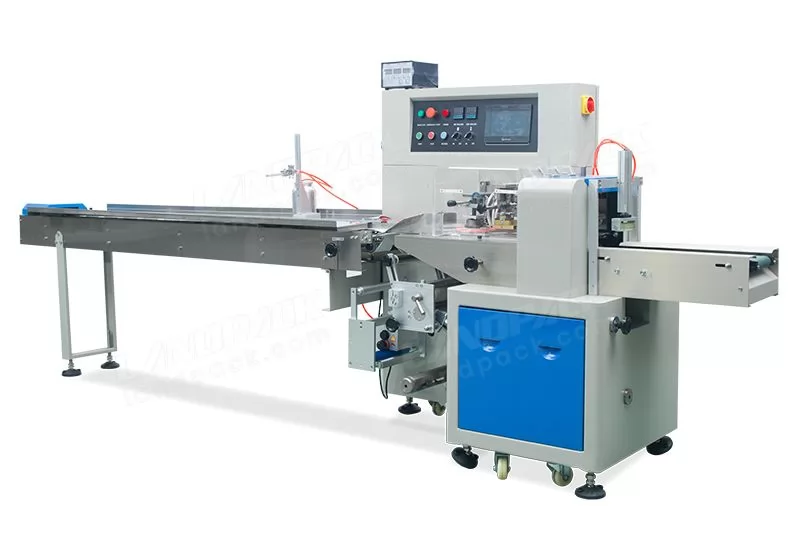

Down Paper Flow Wrapping Packing Sealing Machine

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

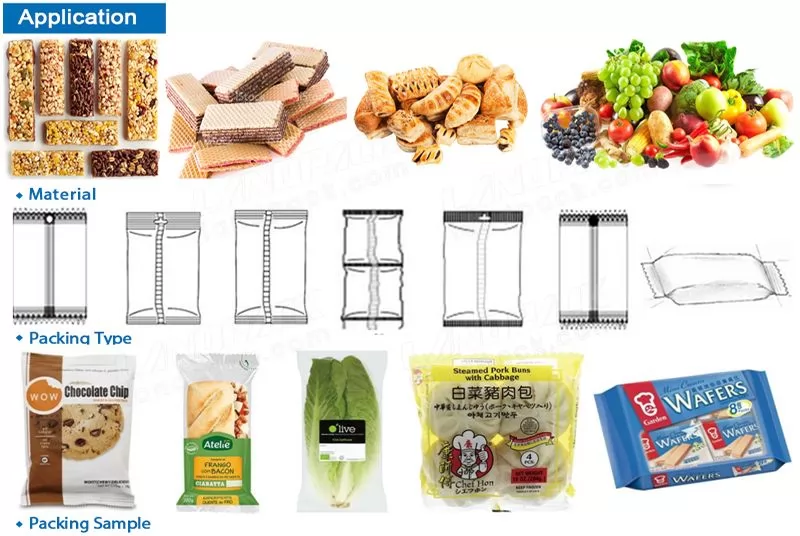

Suitable for packing soft, sticky or multi pack products such as towel, tissue, noodles, egg rolls, sausages, ice lolly, ice cream bar, soft candy, cutlery, vegetables, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:flow pack machine.jpg

Three servo motor control, Bag length can be set and cut in one step,saving time and film.

Interface features easy and quick setting and operation

Self failure diagnosis, clear failure display

High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

Temperature independent PID control, more suitable for packaging different materials

Positioned stop function, without sticking knife or wasting film.

Simple driving system, reliable working, convenient maintenance.

All control is realized through software,easy for function adjusting and technical upgrade.

Film widthMax250mmMax350mmMax450mmMax600mm
Bag length65-190mm or120-280mm90-220mm or150-330mm150-450mm160-500mm
Bag width 30-110mm 50-160mm50-180mm100-280mm
Product heightMax.45mmMax.65mmMax.80mmMax.110mm
Film roll diameter Max.320mm
Packaging rate40-230 bags/min40-230 bags/min40-150Bags/min20-150 bags/min
Machine size(L)3920*(W)670*(H)1320mm(L)3920*(W)670*(H)1320mm(L)4150*(W)820*(H)1450mm(L)4300*(W)920*(H)1460mm
Machine qualityAbout 500kgAbout 550kgAbout650kgAbout680kg
Remarksoptional air filling device / optional angle folding
Film materialOPP/ PE/ PVC/ OPP/ CPP/ PT/ PE/ KOP/ CPP/ Aluminum Coating Film/ Aluminum Film
