Automatic Dried Fruits Bottles Filling Machine LF-SC-FX

  • Aplicación
  • Descripción
  • Parámetro
  • Vídeo

Application:

It is used for canned food, sealing, capping and labeling the cans. Can effectively reduce air contact and extend the shelf life, such as raisin, kismis, apple dried, banana dried, pineapple dried, goji berries, nuts, popcorn, pistachios and other foods.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packing Exambers:Automatic Dried Fruits Bottles Filling Machine LF-SC-FX

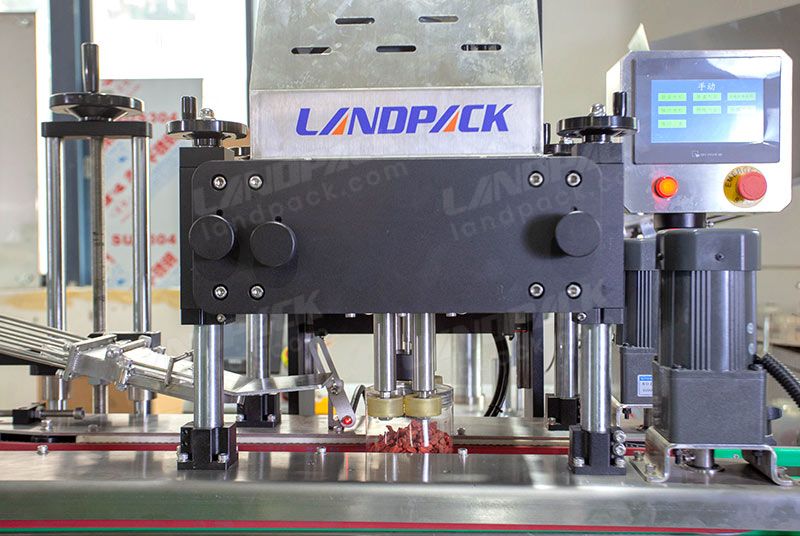

1. The unique design of the can seaming machine roller of this production line can be used for both main and backup purposes; the sealing roller adopts four-roll seal sealing, and the sealing roller never rusts. It is made of chromium steel with extremely high hardness;

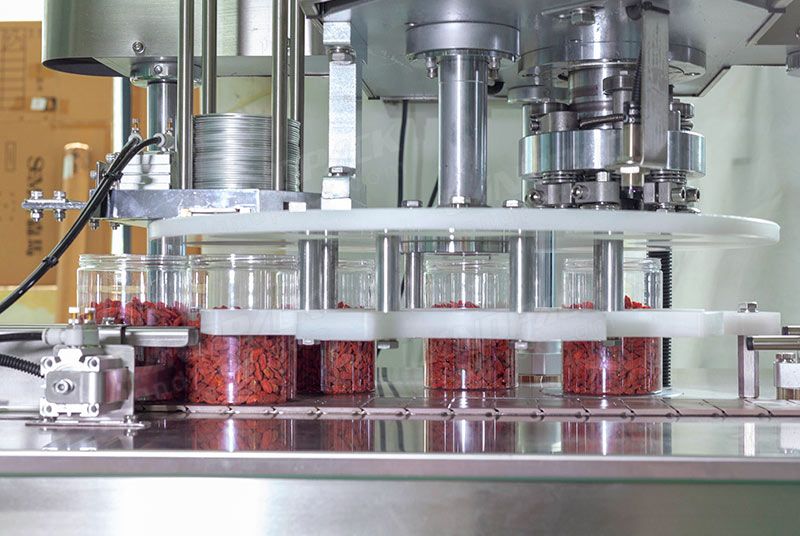

2. This production line adopts a lifting type automatic cover, with fast cover speed, stable operation, low noise and wide application range;

3. Adopting four-wheel clamping, the structure is simple and reasonable, the performance is stable and reliable, and the work efficiency is high. It solves the drawbacks of the traditional capping machine such as slipping and damage to the cap;

4. It is suitable for screw caps, anti-theft and child-proof caps, and has advantages over duckbill caps, pump head caps and sprinkler caps;

5. The spacing and height of the capping mechanism can be adjusted quickly. When changing different specifications of bottle types and caps, it can be adjusted without using tools in the whole process, and only need to adjust the hand wheel to complete the replacement;

6. This line uses a clip-on positioning round bottle labeling machine. The biggest feature of this machine is the use of rollers to rub the label, high precision and high speed;

7. The labeling machine solves the labeling errors caused by the previous belt-type rubbing labels up and down. The machine structure is simple, compact, and easy to operate and maintain;

8. The whole line adopts imported PLC and 7-inch touch screen man-machine interface, production parameterized control, simple operation;

9. The production line has stable operation, low noise, convenient maintenance, and fully meets GMP certification requirements, and is widely used in medicine, food, cosmetics and other industries;

Brief Introduction:

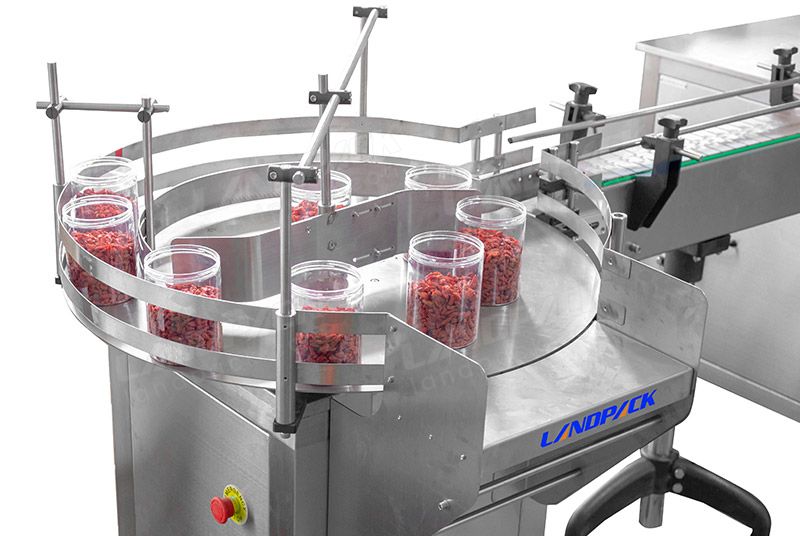

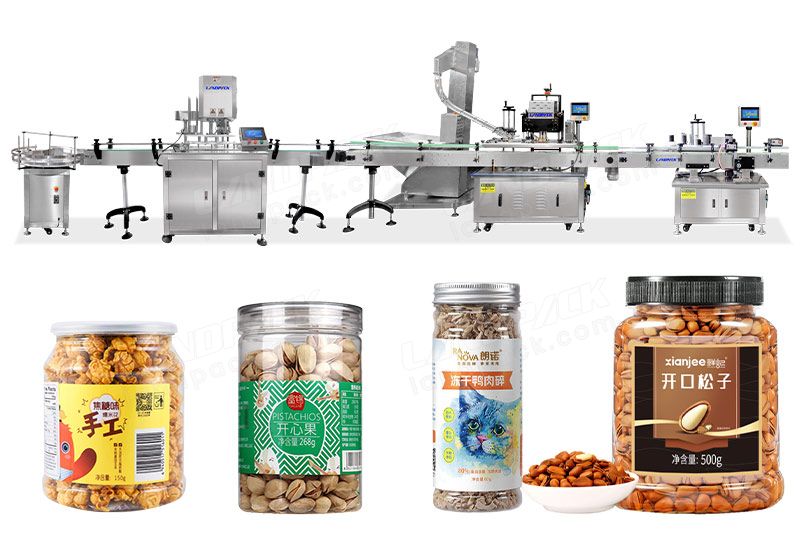

     This automatic production line is used for canned foods, sealing, capping and labeling cans, which can effectively reduce air contact and extend the shelf life, such as wolfberry, nuts, raisins, popcorn, pistachios and other foods. This line is composed of automatic bottle unscramble-can sealing-cap-screw cap-labeling and other processes. Each equipment of this line has reasonable design, compact structure, small floor space, high work efficiency, stable and reliable operation, and simple and convenient operation. . The front end can be connected with the granule filling machine, and the back end can be equipped with unpacking machine, packing machine, sealing machine, and packing machine. It can form a fully automated production line, saving labor and high degree of automation.

Parameter:

ModelLF-SC-FX
Bottle DiameterΦ30mm-Φ135mm (customizable)
Bottle Height40mm-200mm (customizable)
Production Speed20-30 Bottles/min
Control systemPLC
Total Production Line Power5KW
Power supply220V、50Hz
Airconsumption0.5-0.8m³/min
Equipment Material304
